Uploading your Insulet Omnipod (Original system)

⚠️ If you are using the Omnipod DASH system, please see this guide - Uploading your Insulet Omnipod DASH

This article assumes you have:

    • A Tidepool Account - if you do not have a Tidepool account, you can create one for free at tidepool.org/signup.
    • Installed the latest version of the Tidepool Uploader - if you have not installed the Tidepool Uploader, you can download the latest version at tidepool.org/uploader.
    • An Original Omnipod PDM and a USB A-Male to Mini-B cable - Your PDM should have come with this cable, but if you need to purchase a replacement here is a link on Amazon to buy one - AmazonBasics USB A-Male to Mini-B
    • If you are having issues and are on a Mac, see 4. Troubleshooting.

1. Connect your device

  • Connect Your Omnipod PDM to Your Computer. Wait for the PDM to read “USB device ready” at the top of the screen before proceeding.
  • Launch the Tidepool Uploader and log in to your account.
  • Confirm Insulet Omnipod is one of your Devices. You can change your devices by selecting Choose Devices from the menu under your name.

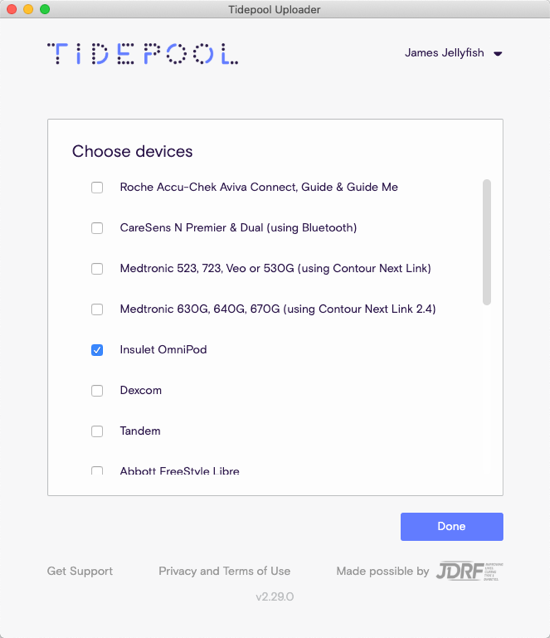

    Tidepool Uploader showing device selection screen

2. Upload your data

  • Confirm that the Tidepool Uploader is set to the right time zone and that your PDM has the correct date and time set on the device.

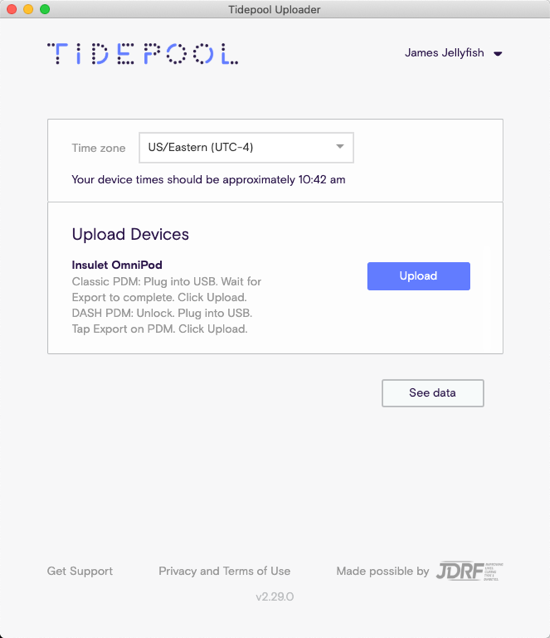

    Tidepool Uploader showing Upload button for Omnipod
  • Click the Upload button in Tidepool Uploader to begin the upload of the data from your PDM.

3. Next Steps

  • After the upload is complete, you can upload another device or click See data to view your uploaded data.

4. Troubleshooting

If you are on a Mac and get an error message like this -

Error: operation not permitted, scandir '/Volumes/NO NAME'

it means Tidepool Uploader cannot talk to your PDM. You need to adjust a setting to fix this -

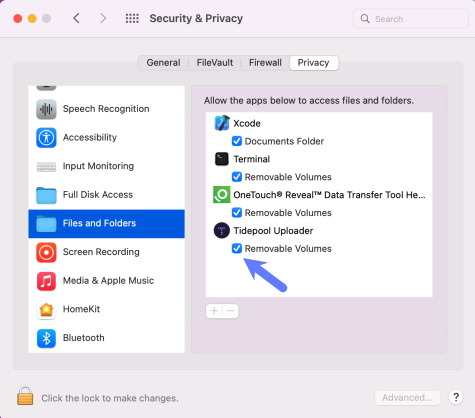

  • Click on the Apple Logo and then click System Preferences.
  • Click on Security & Privacy.
  • Click on the Privacy tab from the four tabs towards the top of Security & Privacy preferences.
  • Scroll down on the list on the left pane until you see Files and Folders.
  • Click on Files and Folders.
  • Examine the right pane to see if you see Tidepool Uploader listed with a checkbox for Removable Volumes.


  • If you see the box unchecked, use the padlock to Unlock the pane and check the box.
  • Now close System Preferences and retry your PDM upload in Tidepool Uploader.

Please reach out to support@tidepool.org if you have any questions or feedback on this article.
