Viewing Diabetes Data - Basics

This article assumes you have:

  • A Tidepool Web account — you can create one for free at tidepool.org/signup
  • Diabetes data uploaded to a Tidepool Web account.

The Basics view is designed to provide a summary of all diabetes interactions over the past few weeks. Almost everything on the Basics page can be clicked on. Section headers filter the data based on different options, and you can click on each of the days to go to the Daily View and see all the diabetes data in that moment.

Table of Contents

Date Range Selection

By default, the Basics view shows the most recent 14 days of diabetes data. Click the calendar icon calendar icon to the right of the displayed date range to select a smaller or larger date range.

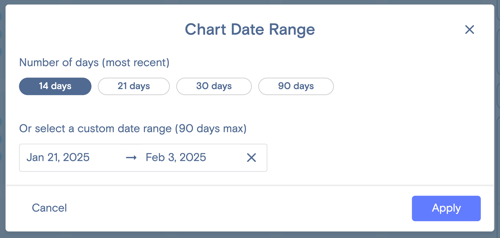

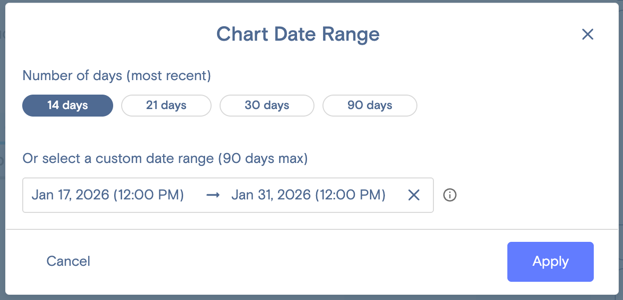

Upon clicking the calendar icon, you will be presented with the Chart Date Range window where you have the option of selecting 14, 21, 30, or 90 days via the available buttons.

Alternatively, you can choose a custom start and end date for a custom date range, for up to 90 days.




Changing the date range will cause the data in the Basics view to be updated, including the Summary Widgets and the Copy as text data.

Summary Widgets

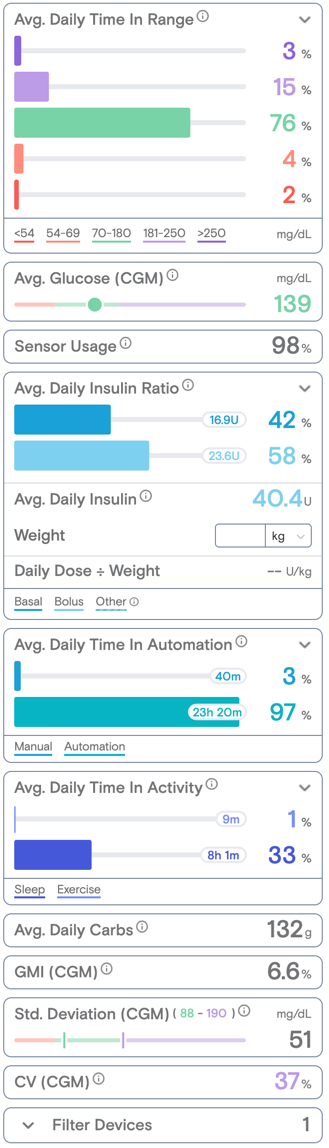

Summary widgets along the right side of the page show blood glucose distribution based on CGM or blood glucose meter (BGM) data (this can be toggled), CGM sensor usage, average daily carbs, glucose management indicator (GMI), basal/bolus ratio, and average total daily dose of insulin (based on body weight if entered).

Image showing aggretate statastics widgets on the right side of Tidepool Web

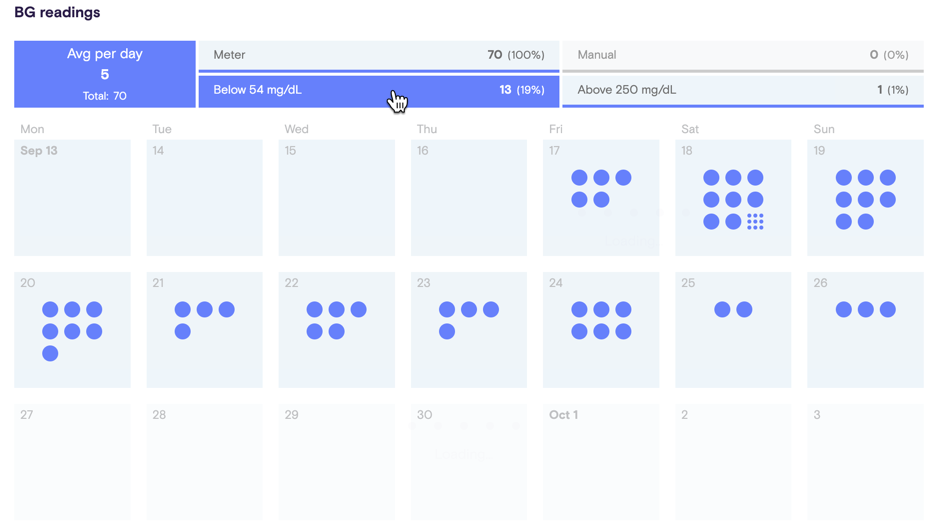

Blood Glucose Readings

The BG readings section can be filtered for CGM calibrations, readings from a glucose meter, manual entries into a bolus calculator, readings below 54 mg/dL, and readings above 250 mg/dL.

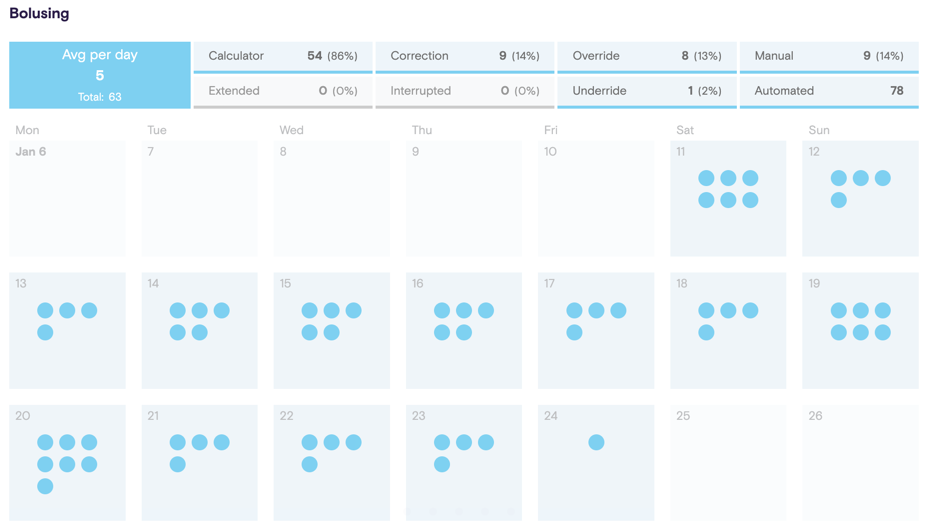

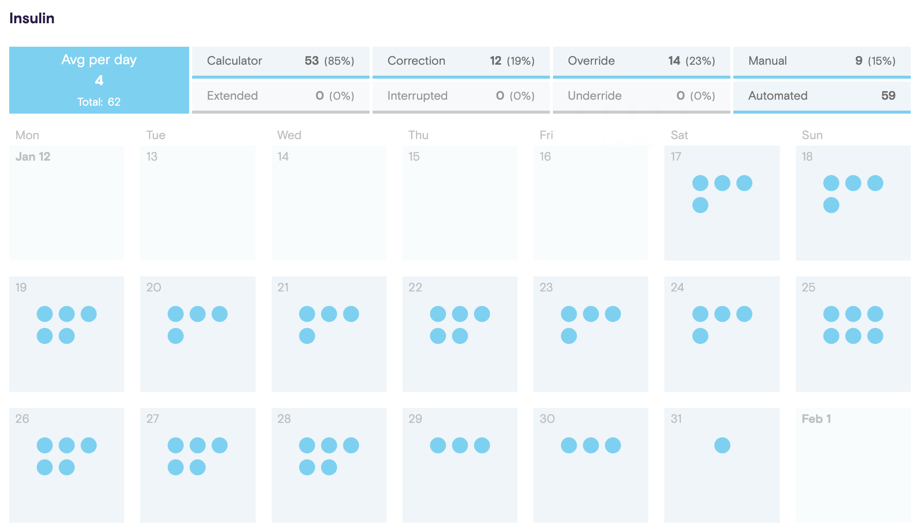

Bolus

The Bolus section summarizes all of the boluses you’ve made from an insulin pump. You can filter by boluses calculated by an insulin pump, corrections for highs, overrides when more insulin than pump settings suggest is requested, underrides when less insulin than pump settings suggest is requested, interrupted boluses, extended boluses, and manual boluses if the bolus calculator has been ignored. Automated correction boluses, if available, are also available to filter.

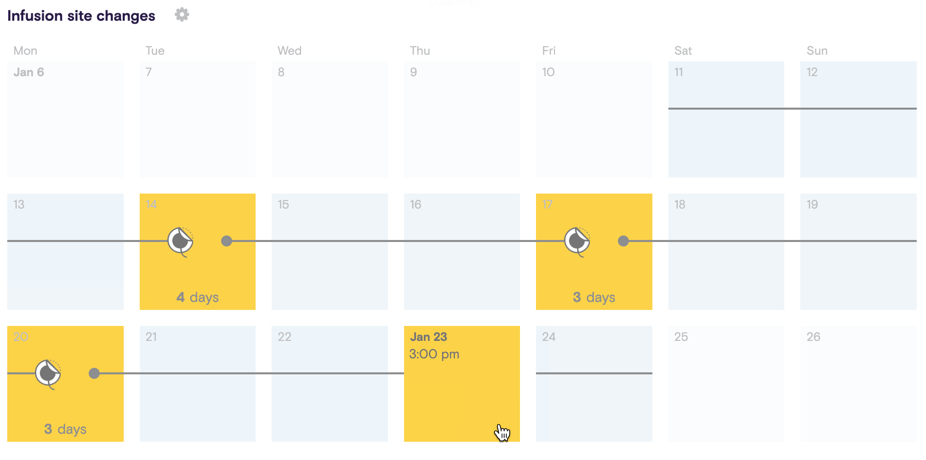

Infusion Site Change

Finally, you can see a visualization of how often the insulin pump site changes in the Infusion Site Changes section.  Read this guide to get additional details about the Infusion site changes section.

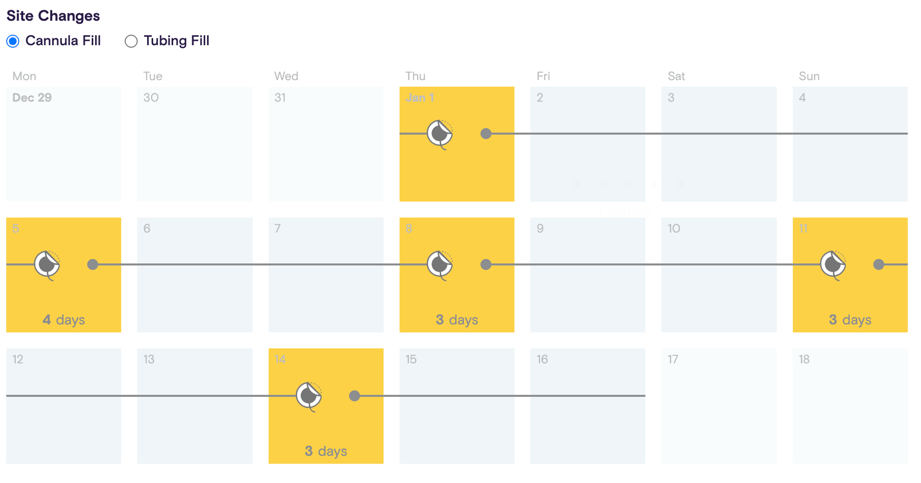

Animation showing the various options one can select to view pump site changes

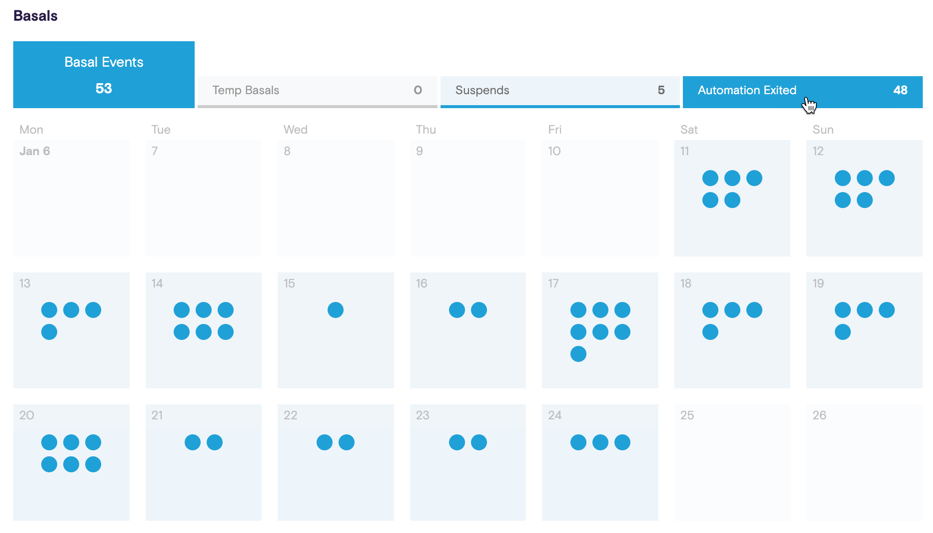

Basals

The Basals section indicates basal interactions beyond scheduled basal delivery. Filters include temporary basal events, basal suspensions, automated suspensions, and automation or Auto Mode exits if available.


Please reach out to support@tidepool.org if you have any questions or feedback on this article.
