Viewing Diabetes Data - Devices

1. Accessing the Device Settings page

Click on Devices from the navigation bar.

2. Understanding the Devices view

The Devices view shows information from insulin pumps uploaded to a Tidepool account. At the top you will see your pump manufacturer name and your pump's serial number. If you have uploaded other pumps in the past, you can click the dropdown to select those previous pump uploads. Additionally, you will see the View settings from dropdown that allows you to see previous uploads from the currently selected pump to review your pump settings over time.

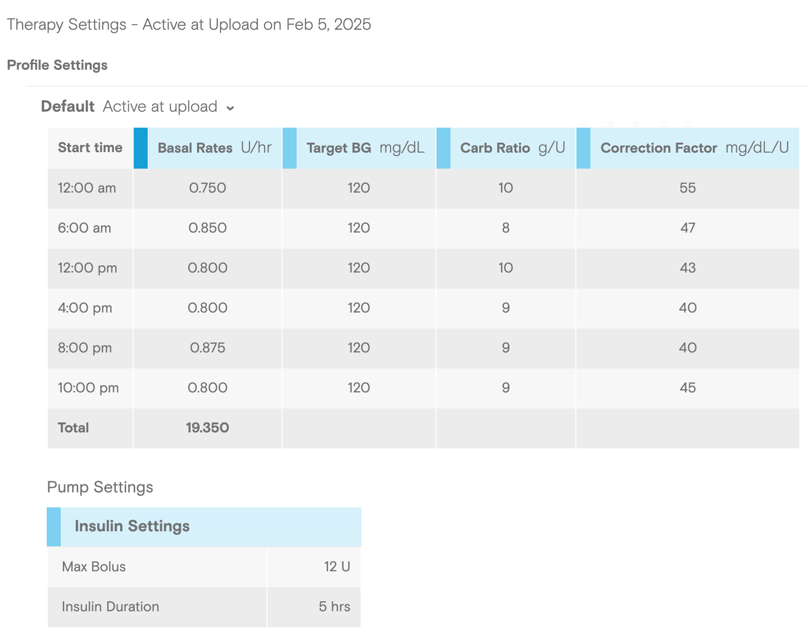

Below that, you will see the pump's settings, available in one or more of profiles, depending on the insulin pump.

3. Insulin Pump Settings

• Basal Rates

  • In this section, you will see the various Basal profiles configured on the insulin pump. They will have the same name as they have on the insulin pump as some devices are able to name the profiles, and some are not. Each profile will contain information about the scheduled duration for each rate of insulin delivery and the total amount of insulin delivered for a 24-hour period.
• Target BG
  • This section shows the target blood glucose value the pump's bolus calculations use, expressed in mg/dL or mmol/L, depending on what is set on the Tidepool Web account.
• Carb Ratio (IC, Insulin to Carb)
  • This section shows the various scheduled Insulin to Carb ratios throughout the day. If there is only one value, then this ratio is applied for the entire day.
  • If instead of using grams, exchanges are used, this is will be expressed as U/exch
  • Correction factor (ISF, Correction)
    • This section shows the sensitivity for corrective boluses and how that factor changes throughout the day.

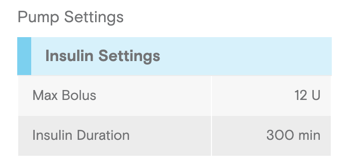

• Pump Settings
  • When provided by the insulin pump, Tidepool Web displays the Max Basal rate, Max Bolus, and the Insulin Duration set on the pump.
