Uploading your Arkray GLUCOCARD Expression Meter

This article assumes you have:

  • A Tidepool account — you can create one for free at tidepool.org/signup.
  • Installed the latest version of the Tidepool Uploader — you can download the latest version at tidepool.org/uploader
  • A GLUCOCARD Expression data cable to connect your Arkray GLUCOCARD Expression meter to your computer. Either contact Arkray Support at 1-800-818-8877 and use extension 4301 to obtain a cable if you need one or buy the third-party cable Tidepool has tested (EZSync001F) on Amazon.

1. Connect your device (PC Link Mode)

  • Before connecting your Expression meter into your computer via the cable, follow these steps:

    • Press and hold Enter (|) to turn the meter on.

    • Press Enter (|) to open the Setup Screen.

    • Press the > button once to navigate to the PC Link Mode.

    • Press (|) to select PC Link Mode. Wait until you see "PC" blinking on the meter screen.

  • Now plug the data cable into your Expression meter into one of the USB ports on your computer.
  • Launch Tidepool Uploader and log into your account.
  • Confirm GLUCOCARD Expression is one of your devices. You can change your devices by selecting Choose Devices from the menu under your name.

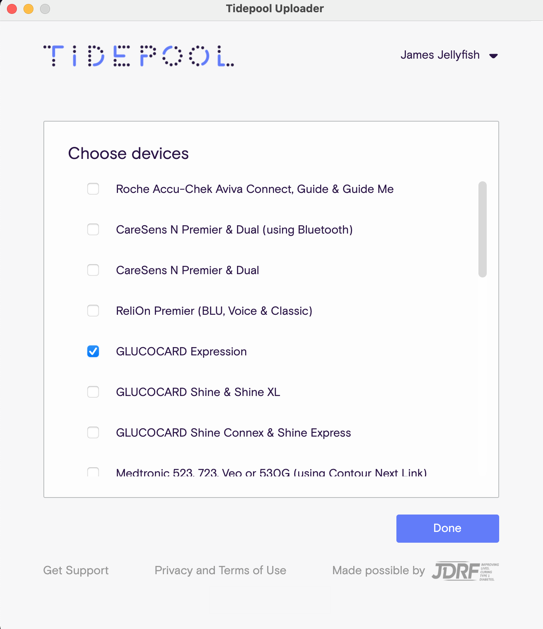

    Image of Tidepool Uploader in device selection screen showing GLUCOCARD Expression ticked

2. Upload

  • Confirm Tidepool Uploader is set to the time zone that matches your location.
  • Click Upload to upload the data from your meter.

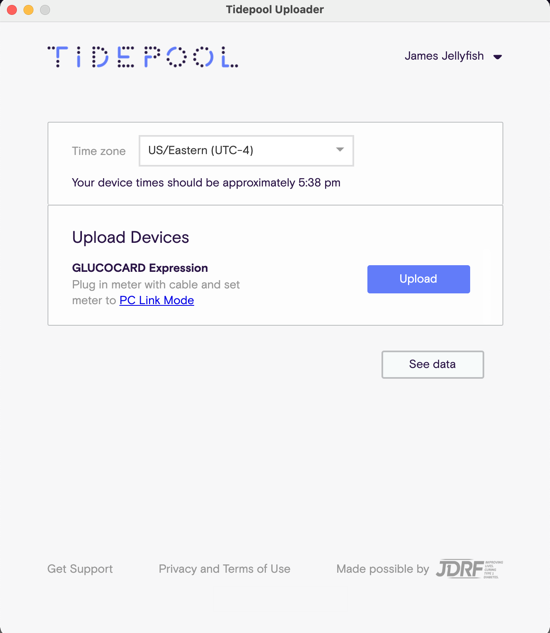

    Image of Tidepool Uploader with Upload button shown

3. After Uploading

  • When done, unplug the data cable from the computer and meter.
  • Press > button to get out of the PC Link Mode, and then hold Enter button to switch the meter off.

Next Steps

  • Click See data to open Tidepool Web in Google Chrome and view your data.

Please reach out to support@tidepool.org if you have any questions or feedback on this article.
