Viewing your Medtronic 670G insulin pump data

This article assumes you have:

  • A Tidepool account — if you do not have a Tidepool account, you can create one for free at https://tidepool.org/signup.
  • Medtronic 670G data uploaded to your Tidepool Web account.
  • Google Chrome installed on your computer.

Introduction

Medtronic 670G insulin pumps do things a little differently than the rest of the insulin pumps Tidepool supports. To account for these unique features, we made some specific updates to the Basics and Daily view.

Please note: It may be helpful to review this guide detailing Tidepool's Daily View, and this guide detailing Tidepool's Basics View first.

If you need to first upload your Medtronic 670G data, please see this guide.

Table of contents

Basics view

On the Basics view under Basal section you will see the all the times the pump exited Auto Mode under the "Auto Mode Exited" heading.

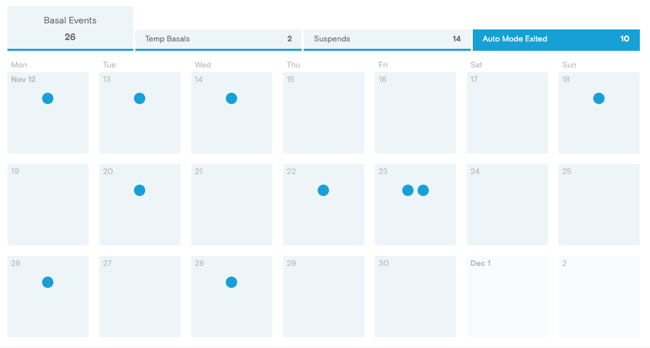

Tidepool Web Basics view showing Auto Mode Exited for 670G



Daily View

Blood glucose

Blood glucose meter readings have a variety of different states depending on how it was taken and what you did with the reported value. Here’s a breakdown of each label:

  • Source — Manual: a blood glucose reading entered into an insulin pump from a non-linked meter or continuous glucose monitor (CGM).
  • Source — Linked: a blood glucose reading transmitted by a linked blood glucose meter.
  • Confirm BG — Yes: the recorded blood glucose reading was accepted (confirmed) on the pump screen.
  • Confirm BG — No: the recorded blood glucose reading was not accepted (unconfirmed) on the pump screen.
  • Confirm BG — Timed Out: the pump screen timed out before a recorded blood glucose reading was accepted or rejected.

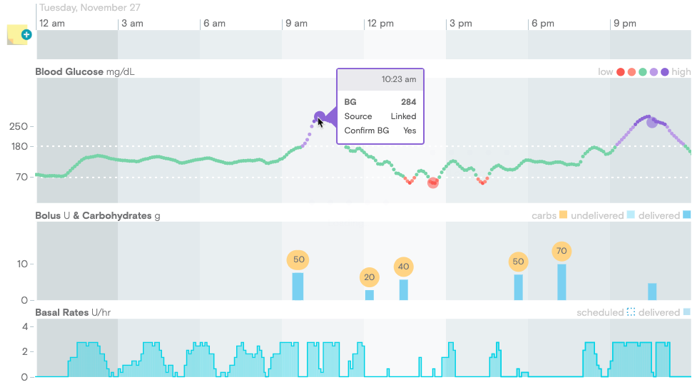

Tidepool Web Daily view showing mouse hover over BG reading

Bolus details in auto mode

Bolus details now show a target of “Auto” while in auto mode. Hover over a bolus to see additional details.

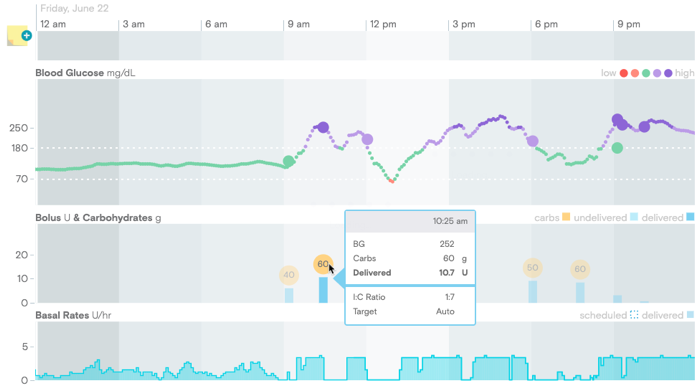

Tidepool Web Daily view showing mouse hover over carb entry into 670G with BG target in Auto Mode

Bolus details in manual mode

In manual mode, bolus details continue to show the appropriate target based on your pump settings.

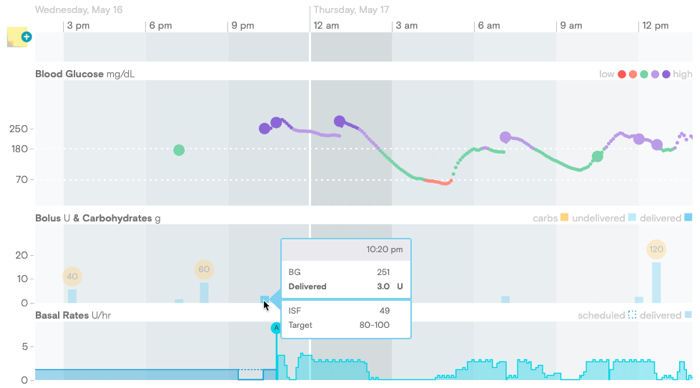

Tidepool Web Daily view showing mouse hover over carb entry into 670G with BG target range set by user in Manual Mode

Basal rates

The basal rates section indicates if you are in auto mode or manual mode:
  • An (A) marker indicates the beginning of auto mode
  • An (M) marker indicates the beginning of manual mode

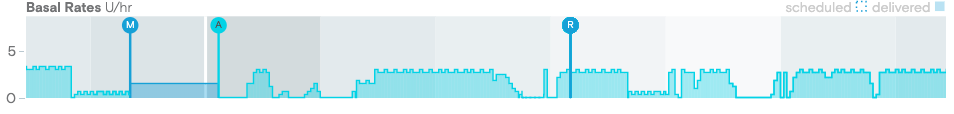

Tidepool Web basal segment from Daily view with A and M markers showing auto and manual mode

You can hover over basal rates to identify timing and amount of an auto mode basal rate.

Tidepool Web basal segment from Daily view with mouse hover over basal rate showing current auto mode rate

You can also hover over basal rates to identify timing and amount of basal rate while in manual mode.

Tidepool Web basal segment from Daily view with mouse hover over manual basal segment showing rate

Daily view statistics

On the right side of the Daily view, you'll find statistics about blood glucose and pump usage, including a time in auto mode indicator.

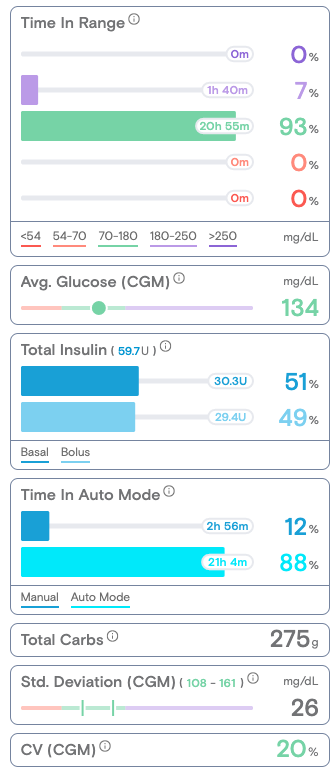

Aggregate Statistics showing time in auto mode widget



Device settings

The "Device Settings" page will indicate if your last upload was made in auto mode.

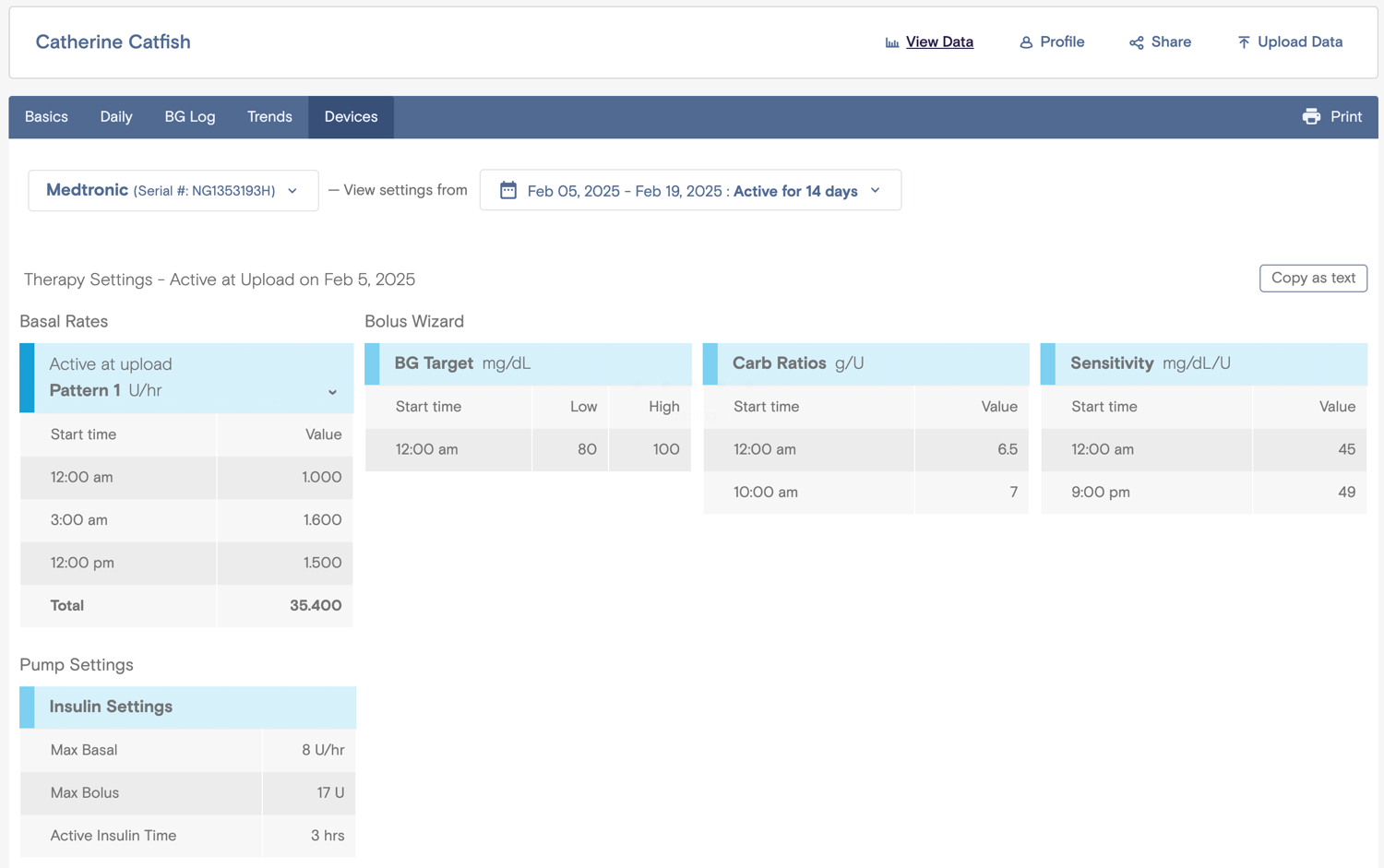

Device Settings showing Auto mode active at upload.



Please reach out to support@tidepool.org if you have any questions or feedback on this article.
